pallet racking steel frame layout support bar beam racks warehouse racking design

FOB Reference Price:Get Latest Price
US $10-15 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
warehouse racking design
Model Number:
warehouse racking design
Type:
Pallet Rack
Scale:
Heavy Duty
Capacity:
Requirements
Product name:
Selective Pallet Rack
Material:
Steel
Usage:
Warehouse
Feature:
Anti-rust
Color:
Blue Orange
Loading Capacity:
as request
Application:
Steel Pallets Widely Used
Finish:
Chrome Galvanized
Design:
Easy Accessibility
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
heavy duty selective pallet racking standard export packing
Port
nanjing port
Lead Time :
Shipped in 20 days after payment

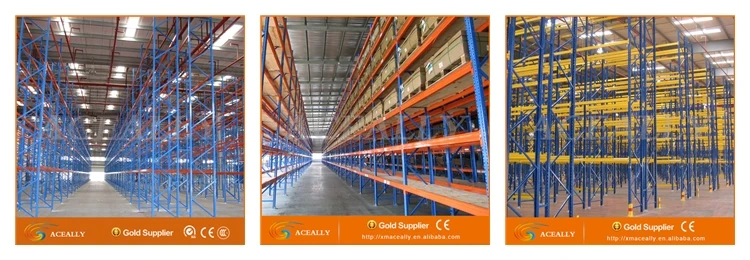

pallet racking steel frame layout support bar beam racks warehouse racking design
Product Description

  One. Warehouse Storage Drive In Rack  detailed introduction



Features 1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame 1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
 Load Capacity & Dimension 1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.
Delivery Time Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery.



 Two. Below listed pictures is related topallet rack  shelving  detailed instruction.




Pallet rack shelving  Beam Post Distributed Loading Chart

UPRIGHT LOADING TABLE
  80x60x1.8           8500KG/BAY
  80x60x2.0          9400KG/BAY   100x70x1.8       11800KG/BAY
  90x70x1.8         10000KG/BAY   100x70x2.0        13500KG/BAY
  90x70x2.0         11800KG/BAY   100x70x2.3        15000KG/BAY
  90x70x2.5         15000KG/BAY   100x70x2.5        16300KG/BAY

BOX BEAM LOADING TABLE



Beam length (mm) 80*50*1.5 100*40*1.5 100*50*1.5 110*50*1.5 120*40*1.5 120*50*1.5 140*40*1.4 140*50*1.5 160*40*1.5 160*50*1.5
1500 4286
1800 2977
1900 2672 3809 4535
2200 1993 2841 3382 4219
2300 1823 2599 3095 3860 3918 4665
2400 1674 2387 2842 3545 3598 4284
2500 1403 2000 2381 2970 3014 3598 4340 5160
2600 1297 1849 2201 2745 2787 3318 4010 4771
2700 1203 1715 2041 2546 2584 3077 3716 4425 5068 6033
3000 974 1389 1655 2065 2093 2492 3010 3585 4105 4887
3300 708 1010 1202 1500 1522 1812 2189 2610 2985 3555
3600 600 849 1010 1260 1279 1523 1839 2190 2508 2986
3800 540 762 907 1135 1148 1369 1658 1965 2251 2680
4000 485 687 818 1024 1036 1235 1550 1774 2032 2419



Pallet rack shelving  accessories


Packaging & Shipping


Exhibition

.jpg

Company Information
Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for over 15 years.

Business scope:
Light duty rack Selective pallet racking VNA Pallet Racking Wire mesh panel Tool cabinet
Modular wire shelving Double deep pallet racking Mezzanine Rack Wire mesh container Dock leveler
Slotted angle shelving Drive In pallet racking Steel platform Steel pallet Supermarket shelving
Boltless rivet shelving Radio shuttle racking Mobile shelving Storage cage Shopping basket
Longspan shelving Cantilever racking Steel locker Steel pallet box Transportation cart



Our products are 100% compatible to major brands such as Dexion, Redirack, Interlake etc. Designed to AS4084-1993 and complying with the European FEM regulations , SEMA and CE certificate . Our ability to design and custom build systems that suit your specific needs yet accommodate your strictest requirements allows us to propose material handling solutions for virtually any application.



company info 2.jpg



The working flow of steel shelving, as follows

Remarks:  Our storage racking are with advanced equipment, especially
1. Shot Blasting Machine: it's one of the most advanced technology for surface cleaning, using high-speed particles to clean metal surface. Compared with traditional acid pickling , it's better at cleaning and more efficient .
2. AkzoNobel Powder Coating: it's one of the best powder , colorful and highly decorative
3. GEMA airbrush: By controlling the coating thickness uniformity, it can eliminate blind angle , achieve high-grade coating effect and improve production efficiency.



Our Services
We offer professional consultation and design. Our experienced staff would assist you in designing a storage system that best suits your particular needs.
We also offer:
1. Professional CAD Drawings
2. Stamped Engineered Drawings
3. Custom designed and built to meet your specific needs and requirements.
4. Custom sizes and colors are also available.
After Sales Service
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for customer;
3.Follow up the case, record the entire process, report complaint to QC department;
4.QC will find defect from which department ,who is in charge to identify responsibility
5.Record customer respond,suggestion,requirement.
FAQ
Are you distributor or manufacturer?
We are professional and leading manufacturer for nearly 15 years.We produce and export high quality pallet racking and shelving system which have a very high reputation among our customers. Our pallet racking, long span shelving, cantilever racking and rivet shelving, drive in rack, steel mezzanine sell very well among our distributors in Europe, Mideast, Australia ,South Africa and Asia.
1) Our Excellent Service
For a quick, no hassle quote just send email to ours
We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time
For Normal orders, we will promise to produce within 25 days.
3)Our Warranty
The High Standards in the Design and Manufacturing of its systems enables us to support its products with a limited 3-Year Warranty, the Longest Manufacturer's Warranty !
4)What are our company delivery times?
This depends on the product. Typically standard products are delivered within 25 days.
The delivery time of the special products is according to the time of setting up of the tooling.
5)What are the payment term?
A. 30% T/T down payment and 70% T/T payment against receipt of the copy of B/L.
B. Letter of credit payment
6)May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information.
